Tuesday 2 July 2013

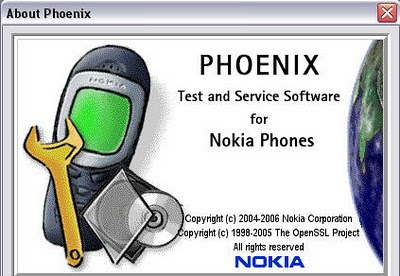

Flashing Nokia Phone Using Phoenix Service Software

Flashing Nokia Phone Using Phoenix Service Software


Disclaimer
1. This article is for Education Purpose only.
2. This tutorial is NOT for Dummies and Non-professional users.

3. This tutorial was tested in “Windows XP” &
Windows 7. (Better use Windows XP“)
4. This tutorial is based on “Phoenix 2011“. It may be different in other versions.

5. I don’t being held responsible for any damage causes to your mobile phone. Try it at your own risk.
6. What you may have done here can VOID your Nokia warranty.

If you OK with above disclaimer, let the FLASH begin!

FAQ
Q : Why upgrade to the latest Firmware needed ?
A : Because the latest Firmware can solve a lot of bugs such as slow messaging, slow opening gallery, RAM issue, etc.

Q : I have Nokia phone that still in warranty why must i follow your tutorial while i can upgrade in Nokia Center ?
A : You’re right. You don’t need this one. Please go to “Nokia Center” to upgrade yourFirmware free of charge.

Q : Why offline? You can use online update with Nokia Software Updater (NSU).
A : That’s because someone may had a bad Internet connection.
If downloads from rapidshare failed, you can just re-download again and again,
BUT if download (online update) through NSU failed then your phone is DEAD.

Q : I have N70 or N73 or another N-series. I want to upgrade to Music Edition or Internet Edition with the latest Firmware. Is that possible ?
A : Yes. This is what i have done. Just follow this article.

Q : My phone is not listed. Do i need to upgrade ?
A : You’re using old-fashion mobile phone (no offense, lol). Then you can read the rest of this article but you won’t need upgrade your phone.

Q : If flashing failed and my phone dead what should I do ?
A : Then you should read more careful my article. No I’m kidding, Don’t worry about that. You can flash dead phones too.

Q. Flashing failed, I can not do anything, “Dead Phone flashing” not work, what now?
A. Bring your phone to nearest “Nokia Service Store”  :(

Tools and Requirements :
1. PC with Win XP or 7  installed. (I didn’t test on Vista yet)
2. Nokia USB cable. (came with the phone!)
3. Phoenix 2009 or 2010 or later Versions (available in the end of article)
4. Offline Firmware for your Nokia type. *(Size vary 30 MB – 300 MB)
- Check your current Firmware by pressing *#0000# in your mobile phone. Write down somewhere.
- Visit HERE to download latest Firmware for your phone.
- Choose your Nokia type or Search the Site.
- Choose your latest Firmware with region on your country and download.
APAC = stand for Asia and Pacific
EMEA = stand for Europe, Middle East and Africa
EURO = stand for Europe
MEA = stand for Middle East and Africa
LTA = stand for Latin America
SEAP = stand for South East Asia Pacific

Here is little info about Nokia Firmware Pack APAC, EMEA, EURO, LTA. By this info you can identify which Firmware pack you have to download according to your own state.
APAC and Asia-Pacific
- Asia-Pacific Regional:
Australia, Bangladesh, China, Hong Kong, India, Indonesia, Japan, Korea, Malaysia, New Zealand, Philippines, Singapore, Taiwan, Thailand, Vietnam

EMEA and Europe/Middle-East/Africa
- EUROPE Regional:
Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Israel, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, UK

- Middle-East Regional:
Pakistan, Iran, Lebanon, Oman, Afghanistan, Bahrain, Iraq, Israel, Kuwait, Lebanon, Palestinian, Territories, Qatar, Kingdom of Saudi Arabia, Syria, UAE, Yemen

- Africa Regional:
Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Republic, Chad, Comoros, Congo, Dem. Republic of Congo, Djibouti
Equatorial Guinea, Eritrea, Ethiopia, Ivory Coast, Egypt, Gabon, Gambia, Ghana, Guinea Republic, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Mayotte, Morocco,Mozambique, Namibia, Niger, Nigeria, Reunion, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa , Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe

EURO and Europe/Europa
- Europe/Europa Regional:
Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Israel, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, UK

LTA and Latin America
- Latin America Regional:
Argentina, Brazil, Caribbean, Chile, Colombia, Mexico, Venezuela

Preparation
1. In your PC :

*. Create restore point through Start > All Programs > Accessories > System Tools > System Restore. Name it ‘Before flashing‘ click create.
*. Remove Nokia PC Suite, Nokia Software Updater, Nokia Care Suite, Nokia Modem Drivers, Nokia Connectivity Drivers through Control Panel > Add/Remove Programs, but DO NOT REMOVE PC Connectivity Solution and Windows – Nokia Modem.

*. Restart your PC.
*. Do not connect your phone before installing Phoenix software.
*. Disable all antivirus, firewall, anti-spyware, anti-malware etc.
*. Disable screen saver.
*. Check C:Program filesNokiaPhoenixProducts If you have those folder in there delete all.

2. In your mobile phone :

*. Backup all your mobile phone content since all your data will be lost after flashing. (If you phone is dead, skip this step!)
*. If you protect your memory card with password, then remove it.
*. Remove your memory card from your mobile phone.
*. Go to Tools > Settings > Security > Phone and SIM.

- Set Pin code request to Off.
- Set Autolock period to None.
- Set Lock code to default password which is 12345.
- Set Lock if SIM changed to No.

*. Uninstall your mobile antivirus. (if you have any)
*. Charge your phone battery to at least 70% and keep charging. (Although flashing takes only 7-10 minutes.)

Begin Flashing

1. Install Phoenix Service Software 2001 or later :


*. First Extract the archive you have downloaded which contains Phoenix Service Software 2011 or later Here
*. Install the software. Be patient, it may take some minutes to install all the components.
*. Don’t run Phoenix software after installation.
*. Connect your Nokia handset to your PC with USB cable in PC Suite mode.
*. windows will start installing the connectivity drivers as soon as you connect the phone. Let it install completely.

- If this process failed then you must be remove PC Connectivity Solution. But don’t worry we created restore point earlier remember.
- Restore your system and start remove Nokia component again but do not remove PC Connectivity Solution.


2. Install Offline Firmware Package You Downloaded :

- If your Firmware file is in .RAR format, first extract it using WinRar on desktop.
- On desktop you will find .EXE file of your Firmware file.
- Install the EXE file. Do not change its path. It will install it to default location of C:Program files/Nokia/Phoenix/Products

- If you have downloaded a Firmware file which doesn’t have an auto setup, then just copy your Extracted folder Manually in the directory C:Program files/Nokia/Phoenix/Products
- Be sure you install updated Firmware. You cannot downgrade your phone’s Firmware in BB5 phones which includes all new Nokia phones including N-Series. (N82, N90, ….) (But there is still some tricks!)
- Phoenix allows downgrading but your phone doesn’t allow it as your phone has some special security built into. So no use of trying it. You’ll get an error message.

For Nokia Firmware Download Here

3. Flashing Procedure (Updating to latest Firmware version) :

- Open Phoenix Service Software by double click on the icon from your desktop.
- Connect your phone in PC Suite Mode.
- In Phoenix, click File > Manage Connections.
- Now click New.

- Now select the type of cable you are using. If you are using DKE-2, CA-53 [N-Series] cable, select USB.


- Click Next. It will find your product and say FOUND. If it doesn’t find any, you can try changing your cable type by clicking Back.
- Click Next and then Finish.

- Now your cable type (USB) appears in the connection list. Select it. Click APPLY and thenCLOSE.
- Now select File > Open Product.
- A list of RM code will open. Select your phone’s RM code. Like RM-133 for Nokia N73 or RM-84 for Nokia N70 and other nokia’s with there corresponding Rm Types but choose the one which corresponds to your phone! Click OK. At this steps if you receive an error its okay. Just ignore it.
- Now select File > Scan Product.
- Your phone’s Firmware info will appear at the extreme bottom of the Phoenix window.
- Now go to Flashing > Firmware Update.
- A window will open.
- On that window click Browse button (the one with three dots)


- A window will open with various products and various regions. Choose the region or country of your choice according to the language pack you want to install.
- Click OK.
- Click Refurbish.
- Now your actual flashing has started.


DO NOT TOUCH!
Don’t touch your phone or press any button until the flashing has finished.

Also don’t touch your data cable and your computer system.

Remember don’t Touch! (Still touching?)

- At the end Phoenix will tell you to remove your phone as the flashing has finished.
- Now wait for your phone to reboot into latest Firmware.
- The flashing procedure takes 7-10 minutes


4. Flashing Dead Phones [Which show only white screen on startup] :
Note: You can install any Firmware in dead phones whether it is latest and or the old one.
Note (Again): You can make a dead phone if you want! Just unplug your cable while flashing!

The procedure is almost same as regular flashing.

- Start Phoenix. Connect your phone with USB Cable (phone is off at this time).

- Click File > Open Product. Select your RM code from the window that appears. Click OK.
- Click File > Manage Connections. Select No Connection. Then APPLY and CLOSE.
- Now straight away click Flashing > Firmware Update.


- A window will open. Click on Browse button. (the one with 3 dots)
- A window will open with various products and various regions. Choose the region or country of your choice according to the language pack you want to install.
- Here is different part, check the option “Dead Phone USB Flashing”.
- Click Refurbish.
- Flashing has started.


- After some seconds flashing will pause and asking you to turn your phone ON. (Or maybe not, It depends on phone)
- Press POWER button of your phone until backlight comes up. Remember not to remove your cable or even remove it accidentally will switching on your phone!!
- Flashing will proceed.
- Your phone will automatically start when the flashing finishes.

After finish you can safely remove your data cable from Phone. FINISHED!!!

5. Extra
If you want to install another update to your phone after some months, first remove the previous version you installed in “C:Program files/Nokia/Phoenix/Products”

Delete all the contents of Products folder before installing a new Firmware.
